STANDARD PRODUCTS >
DIFFERENCIATED COLLECTION > CFS COMPACTOR
CFS COMPACTOR
Compaction equipment for differenciated waste collection.

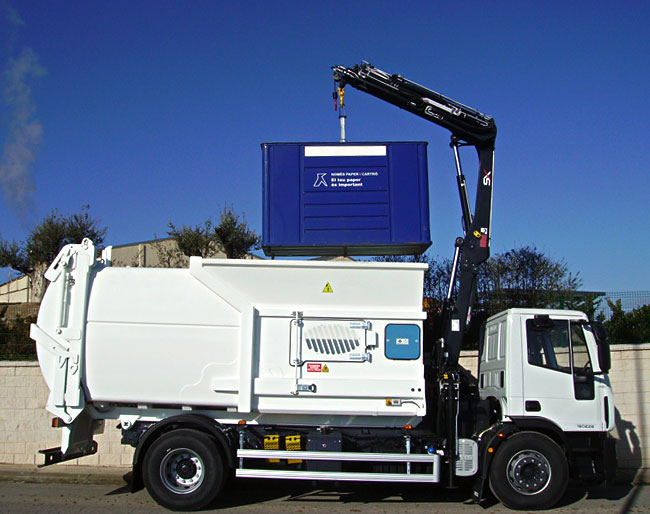

Truck mounted.Crane system for unloading.
Truck mounted.Crane system for unloading.
- High density compaction.
- Curved rear door for even distribution of waste.

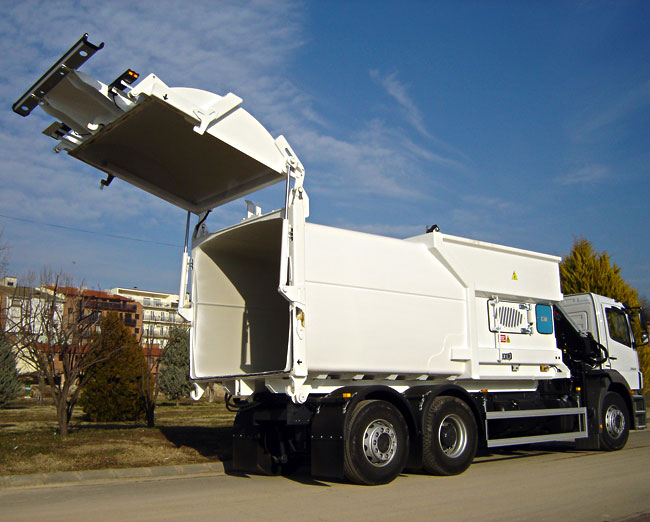

- Hydraulic rear door.
- 100% watertight.
- Low noise level.

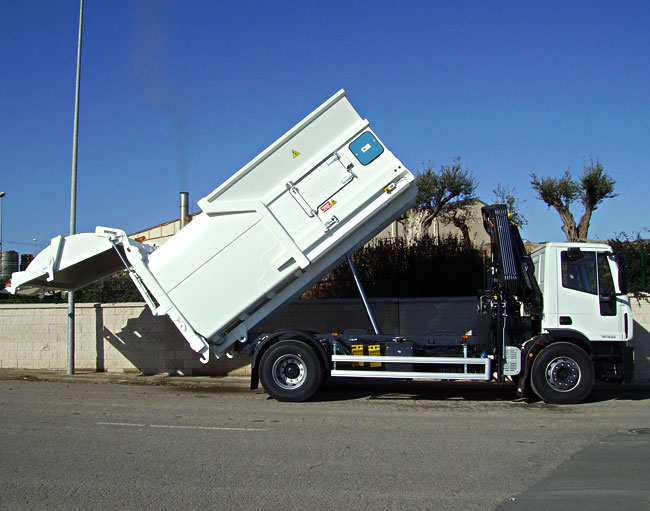

- Conical container for easy unloading.
- Curved side section, completely flat for easy application of logos.
- Waste retention system at entrance of container.
- Press ram brackets bolted onto main structure.
- Curved rear door for even distribution of waste.
- Hydraulic rear door.
- 100% watertight.
- Low noise level.
- Conical container for easy unloading.
- Curved side section, completely flat for easy application of logos.
- Waste retention system at entrance of container.
- Press ram brackets bolted onto main structure.
| MODEL | MTWA Tm |
EQUIPMENT WEIGTH kg* |
LOADING CAPACITY kg** |
PUMP FLOW l/min.*** |
WORKING PRESSURE bar.*** |

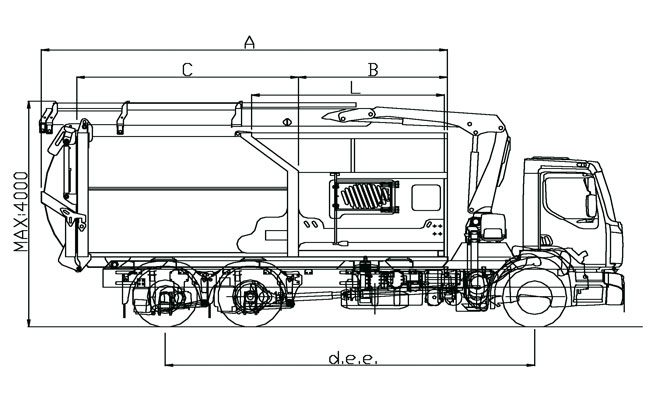

mm | |||||
| A | B | C | L | w.b. | |||||||
| Max. | Min. | ||||||||||
| CFS-16 | 26 | 6610 | 11000 | 60 | 210 | 5935 | 2360 | 3010 | 3050 | 5800 | 5600 |
| CFS-18 | 26 | 6770 | 10840 | 60 | 210 | 6435 | 2360 | 3510 | 3050 | 6200 | 5900 |
| CFS-20 | 26 | 6930 | 10680 | 60 | 210 | 6935 | 2360 | 4010 | 3050 | 6500 | 6200 |
